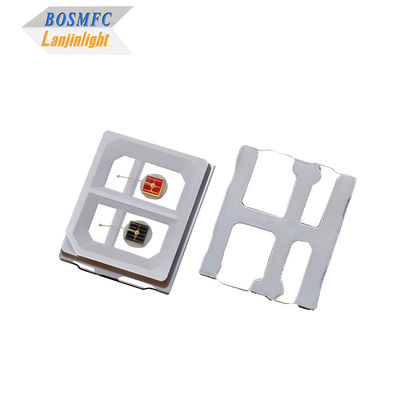

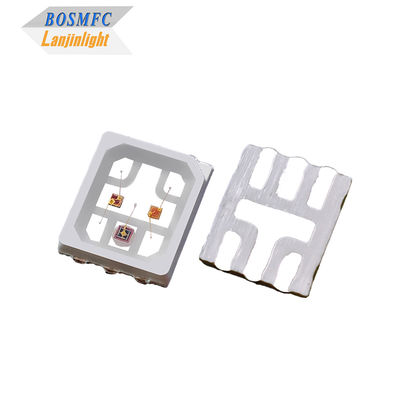

2835 SMD LED tri-color red 660nm + blue 460nm+ IR 830nm Combined Chip Led Light for Beauty TherapyFacial Light
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | BOSMFC |
| 인증: | Rohs, Reach |
| 모델 번호: | 2835 SMD LED Red+ Blue+ IR |
결제 및 배송 조건:
| 최소 주문 수량: | 4000 PC |
|---|---|
| 포장 세부 사항: | 4000pcs/reel, Reel+Anti-static bag+carton |
| 배달 시간: | 5-15 일 |
| 지불 조건: | T/T, Western Union, PayPal |
| 공급 능력: | 500KK/월 |
|
상세 정보 |
|||
| 힘: | 0.6W | 방출 색상: | 빨간색+ 블루+ 적외선 조명 |
|---|---|---|---|
| 파장: | 660/460/830NM | 전류 전류: | 20MA |
| 전방 전압: | 1.8-2.4v/1.3-1.7v | 보기 각도: | 120 ° |
| 크기: | 2.8*3.5*0.7mm | 작동 온도 (℃): | -40~+85 |
| 저장 온도 (℃): | -40~+100 | 수명: | 50,000 시간 |
| 보증: | 3 년 | 칩 브랜드: | 산 칩 / 에피타 칩 |
| 패키지: | 4000pcs/릴 | ||
제품 설명
2835 SMD LED tri-color red 660nm + blue 460nm+ IR 830nm Combined Chip Led Light for Beauty TherapyFacial Light
This advanced 2835 SMD LED integrates three precise wavelengths in one compact chip: 660nm red light to rejuvenate skin and boost collagen, 460nm blue light to target acne-causing bacteria, and 830nm infrared for deep tissue relief. Ideal for facial devices and wearable therapy gear, it delivers professional-grade phototherapy—anti-aging, cleansing, and muscle recovery—all in a safe, efficient, and portable solution.
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Instant light(less than 100ns)
- RoHS and Reach certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 660nm
460nm 830nm |
--- |
700 500 30 |
--- | mcd
mcd mcd |
IF=20mA |
| Dominant wavelength | 660nm
460nm 830nm |
650 450 820 |
--- |
665 470 840 |
nm | IF=20mA | |
| Forward voltage | VF | 660nm
460nm 830nm |
1.8 2.8 1.3
|
--- |
2.4 3.4 1.7 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 2.8*3.5*0.7mm |
| Storage Temperature | －40~+100℃ | Packing | 4000pcs/reel |
Applications:
- Skin Rejuvenation & Anti-Aging
Uses red light to boost collagen and reduce wrinkles.
2. Acne Treatment & Prevention
Uses blue light to eliminate acne-causing bacteria.
3. Muscle & Joint Pain Relief
Uses infrared light to soothe deep tissue and inflammation.
4. Targeted Eye Care
Reduces dark circles and puffiness in focused treatments.
5. Wound Healing & Tissue Repair
Accelerates recovery of skin and muscle injuries.
6. Wearable Physical Therapy
Enables portable pain management for knees and shoulders
